Description

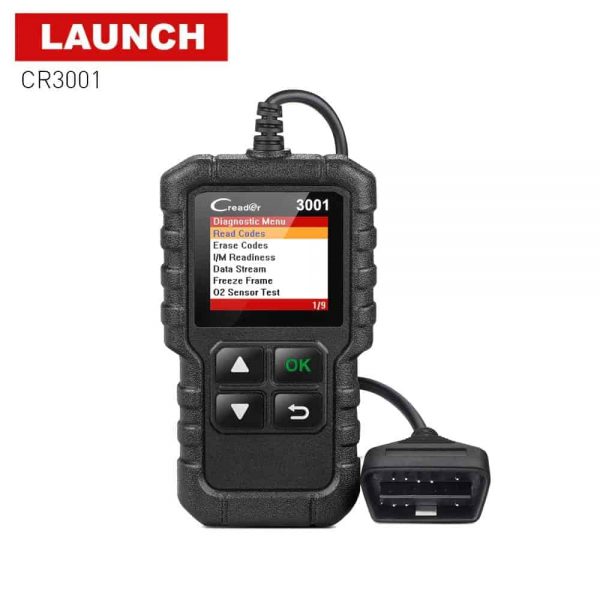

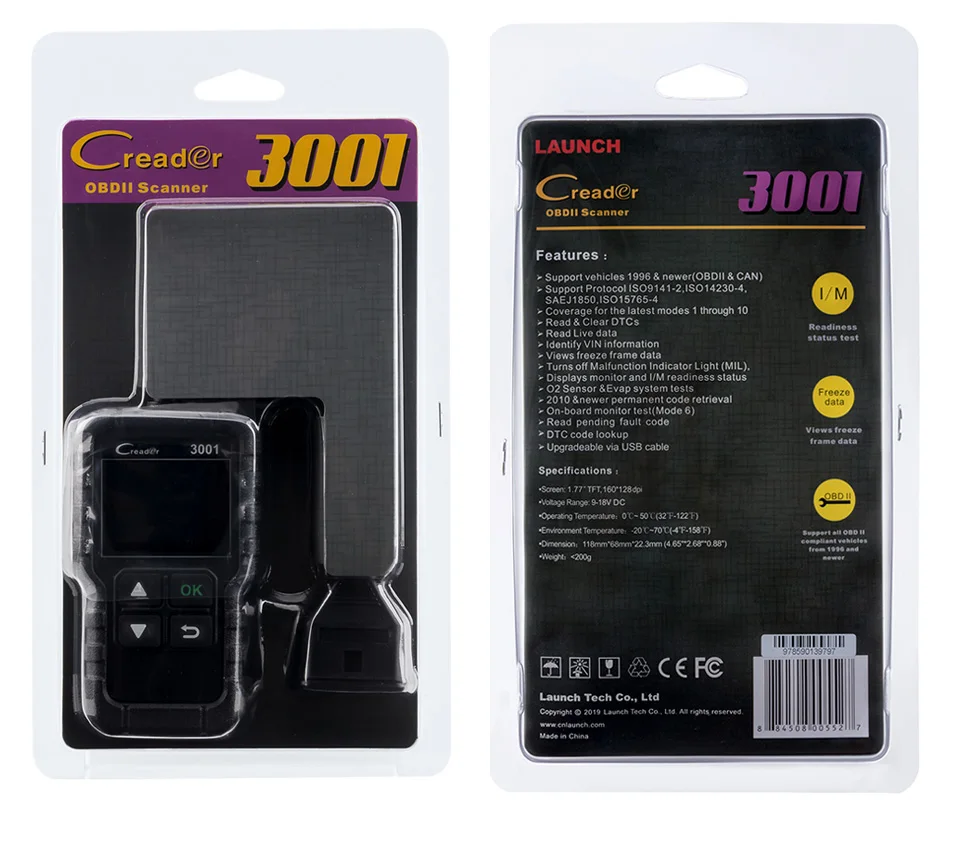

LAUNCH CR3001 OBD2 Diagnostic Scanner & Code Reader – Multilingual with Free Software Updates
Overview:
This CReader 3001 supports all 10 modes of OBD II test for a complete diagnosis. The color LCD screen enables users to read/clear DTCs, record and save data. The CReader 3001 is also very easy to use. With built-in help menus and code definitions, diagnosing and repairing that dreaded “Check Engine Light” is now easier than ever! Moreover, CReader 3001 also features the following bi-directional “special tests”: EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing….
Features:
- This code reader diagnostic tool provides full OBDII/EOBD diagnostic functions and meets standard protocols.
- Features a user-friendly dust cap design that protects the connector from dust, water, oil, and dirt.
- Its ergonomic design allows it to fit comfortably in the palm of your hands. This allows you to carry it around no whether you are just in the garage or going on a trip.
Specifications:
- Brand Name: LAUNCH
- Item Type: Code Readers and Scan Tools
- Dimensions: 118mm x 68mm x 22.3mm / 4.65″ x 2.68″ x 0.88 “
- Weight: <200g
- Screen: 1.77″ TFT, 160x128dpi
- Voltage Range: 9-18V
- Operating Temperature :0°C to 50°C (32ºF to 122ºF)
- Environment Temperature: -20°C to 70°C (-4ºF to 158ºF)
- Supported Languages: English , French , Russian , Spanish ,German, Italian & Portuguese

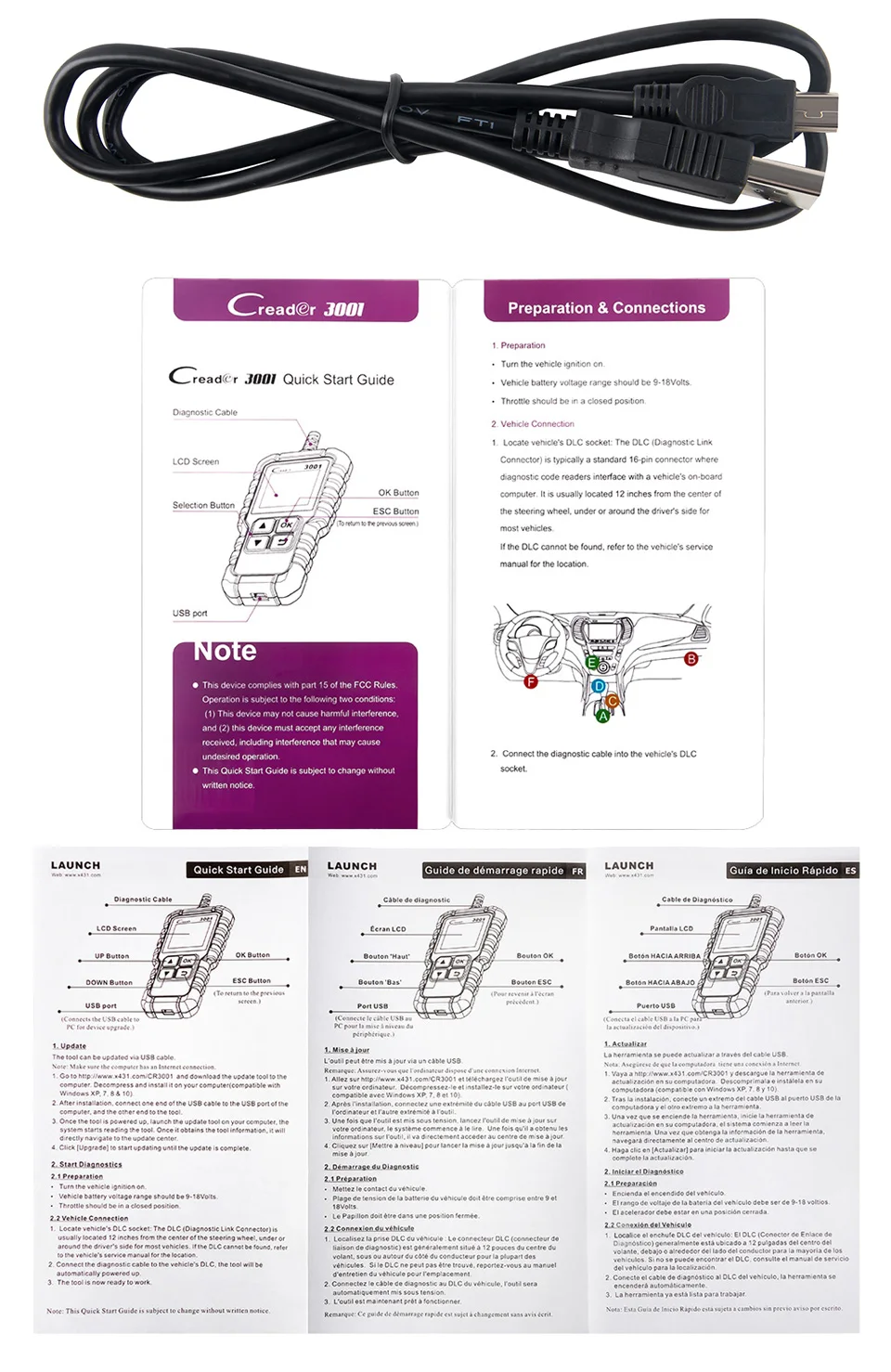

Package Includes:
- LAUNCH CR3001 OBD2 Diagnostic Scanner & Code Reader x1
Parts Might Cause Your Check Engine Light ON Include:
- Gas Cap
- Oxygen Sensor
- Air Fuel Ratio Sensor
- Mass Air Flow Sensor
- Ignition Coils
- Spark Plug Wires
- Spark Plugs
- Thermostat
- EGR Valve
- Evaporatative Emission Canister Purge Valve(EVAP)
- Catalytic Converter.
If the Engine Light Is Not Turned OFF in Time, It Will Cause:
- Serious environmental pollution
- Increased fuel consumption
- Increased engine noise
- Increased in temperature , etc
Full OBD2 Function Diagnnosis:
- Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs) - Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors. - Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data. - I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. - Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display. - View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. - O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. - On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems. - Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc. - Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability - Free Update Online
It can be connected to PC through the USB cable for upgrade to keep updated with the latest software version.
CR3001 is Universal and Supports OBD2 Protocols Cars:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
(Note: CR3001 only Support 12V Gasoline & Diesel, Does not support 24V Truck )
- American Cars : from 2000 – now
for Chrysler , for Ford, for GM, For Jeep , for lincoln ,for Buick ,for Cadillac ,for Chevrolet , for Dodge , for HM… - European Cars : from 2003 – now
for BENZ ,for SMART , for SPRINTER , for BMW ,for VW ,for SKODA ,for AUDI ,for OPEL, for Lamborghini , for PORSCHE, for Maybach,for Euro Ford , for LANDROVER , for Jaguar , for ASTONMARTIN ,for Bentley , for Rolls-Royce , for ROVER , for MINI , for VAUXHALL ,for DR , for FERRARI ,for FIAT ,for Abarth ,for LANCIA ,for Alfa Romeo , for Maserati ,for BUGATTI ,for PEUGEOT ,for CITROEN ,for RENAULT , for SAAB , for VOLVO , for OPEL，for GM，for GMSA , for Dacia , for SEAT.. - Japanese/Korean Cars: from 2006 – now
for HONDA ，for Acura ,for TOYOTA ,for SCION ，for LEXUS ，for MAZDA , for NISSAN ，for Infiniti ， for JPISUZU，ISUZU ， for TLISUZU for DAIHATSU , for SUZUKI , for MITSUBISHI ,for SUBARU , for SAMSUNG , for DAEWOO ,for SSANGYONG , for HYUNDAI , for KIA… - Chinese Cars: from 2009 to now
for GREAT WALL, for HUACHEN, for GEELY, for DFHONDA, for LIFAN… - Russian Car: from 2012 to now
for GAZ, for VAZ ,for LADA, for IZH, for PAZ,for SeAZ ,for UAZ, for ZAZ…
Languages:
- Supported Languages: English , French , Russian , Spanish ,German, Italian & Portuguese
- Easy to Change LAUNCH CR3001 Language:
Turn Off Engine Light
Detection EVAP System
I/M Readiness
How to Update LAUNCH CR3001
Easy to Carry
The OBD2 scanner’s mini size fits comfortably in the palm of your hand. so that you can carry it around no matter in garage or on a trip.

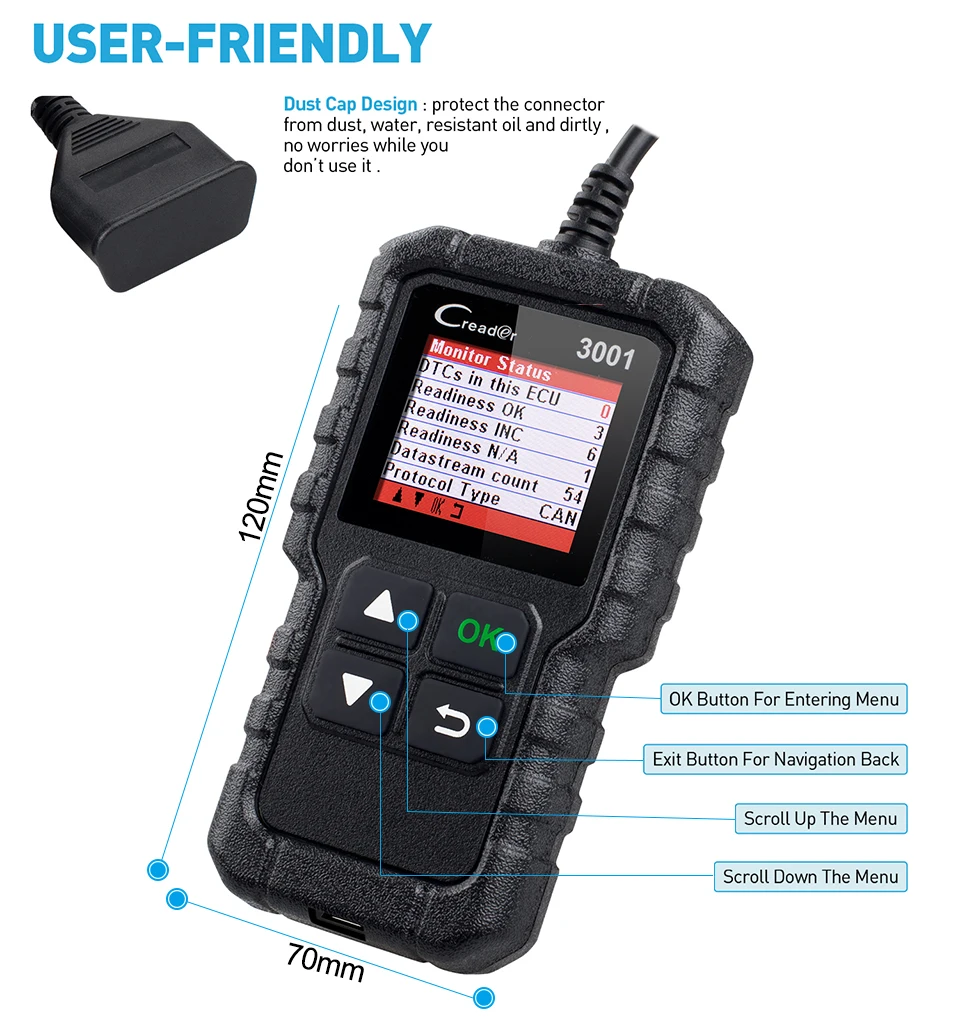

User-Friendly
Dust Cap Design : protect the connector from dust, water, resistant oil and dirtly , no worries while you donrsquot use it
